DS-30SSY Lathe
Swing Diameter | S.A.E | METRIC
Over Front Apron | 31.8 in | 806 mm
Over Cross Slide | 20.8 in | 527 mm
Over Second Spindle | 21.8 in | 552 mm
Capacities | S.A.E | METRIC
Chuck Size | 10.0 in | 254 mm
Max Cutting Length (varies with workholding) | 23.0 in | 584 mm
Bar Capacity | 3.00 in | 76 mm
Max Cutting Diameter (varies with turret) | 18.0 in | 457 mm

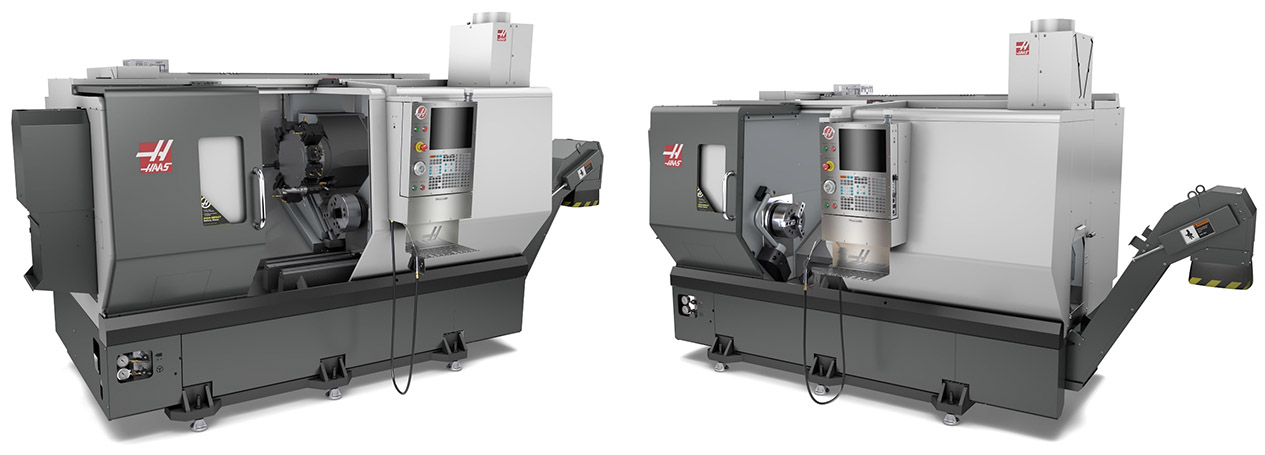

Alert’s newest addition greatly expands machining operation capabilities. Not only is the lathe (a HAAS DS30SSY dual-spindle 5-axis CNC lathe) capable of standard X, Y, and Z CNC machining, but live tooling can move multi-directionally as well for features such as side ports and profiles. Specialized flanges, fittings, and many more products can be machined on a small-run or production basis.
